VC-LFO

En français

back to summary


Description

The VC-LFO is an utility module which goal is to generate slow rate periodic signal that can be used to control/modulate other modules. The oscillating period can be varied from minutes to ms, that is from subaudio-range (0.01Hz) to low audio range (100Hz).
I designed a VC-LFO that can be implemented into two variants. In fact these use the same PCB but some part of it is either used or not. This was lead by my choice of using single width DOTCOM panels for the VC-LFO. Unfortunately, all the features cannot be made accessible on a single width panel, that's why I made two versions of it, each of them giving access to different features.

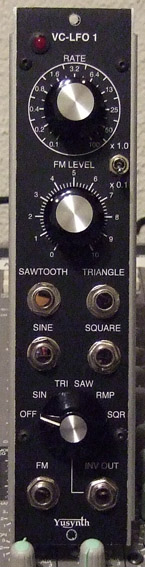

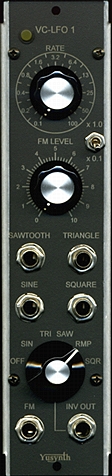

VC-LFO1

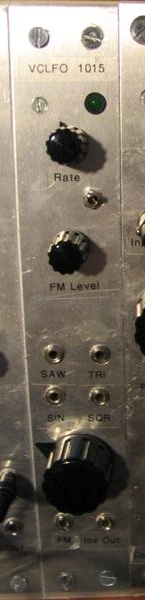

has one FM input and four direct signal ouputs (SAWTOOTH, TRIANGLE, SINEWAVE and SQUARE) and an inverted signal output that can be switched to the following signals : OFF, SINE, TRI, SAW, RAMP and SQUARE). A toggle switch makes it possible to change the range : up 0.1Hz to 100Hz, down 0.01Hz to 10Hz.

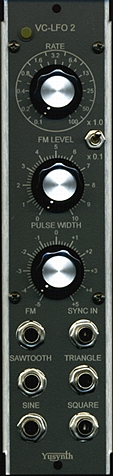

VC-LFO2

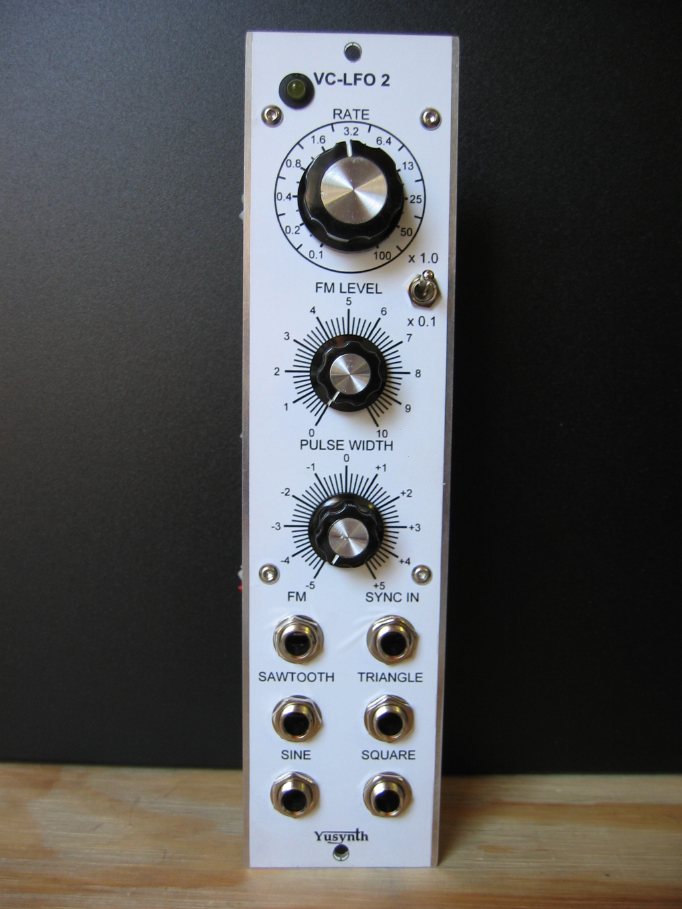

has one FM input, a SYNC input and four direct signal ouputs (SAWTOOTH, TRIANGLE, SINEWAVE and SQUARE). A toggle switch makes it possible to change the range : up 0.1Hz to 100Hz, down 0.01Hz to 10Hz.

The DIY builders' gallery

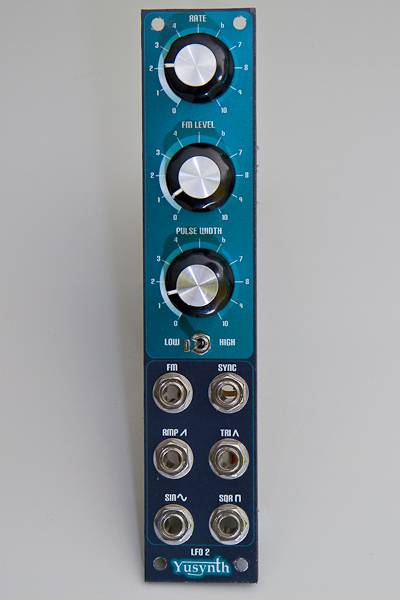

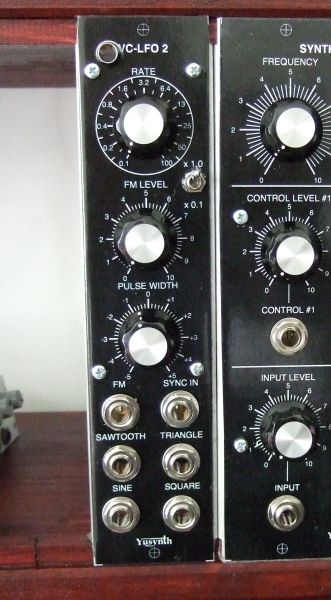

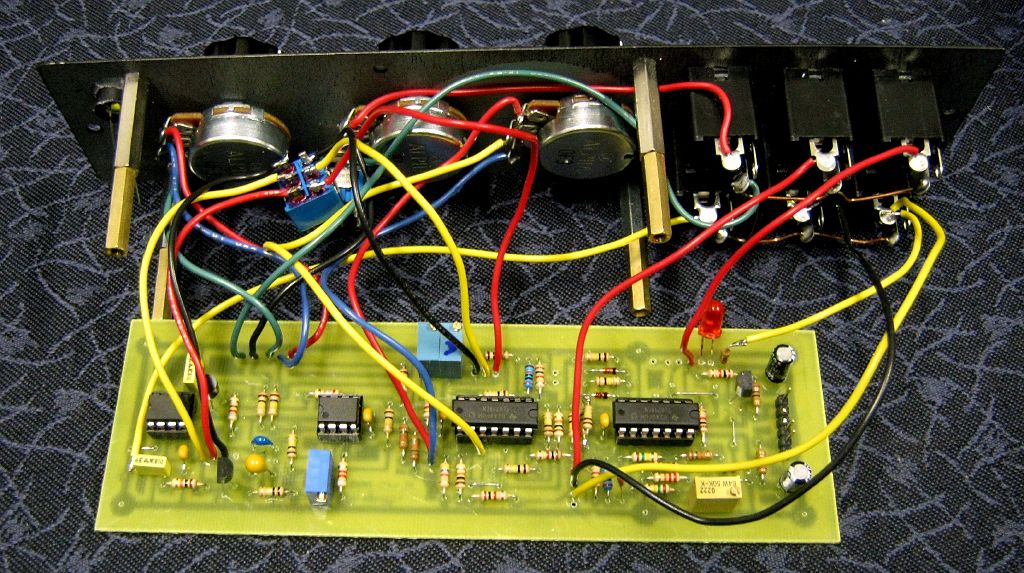

Here are the photographs of the yusynth VC-LFO modules built by other synth geeks around the world.
Thank you guys for sending me these nice photos.

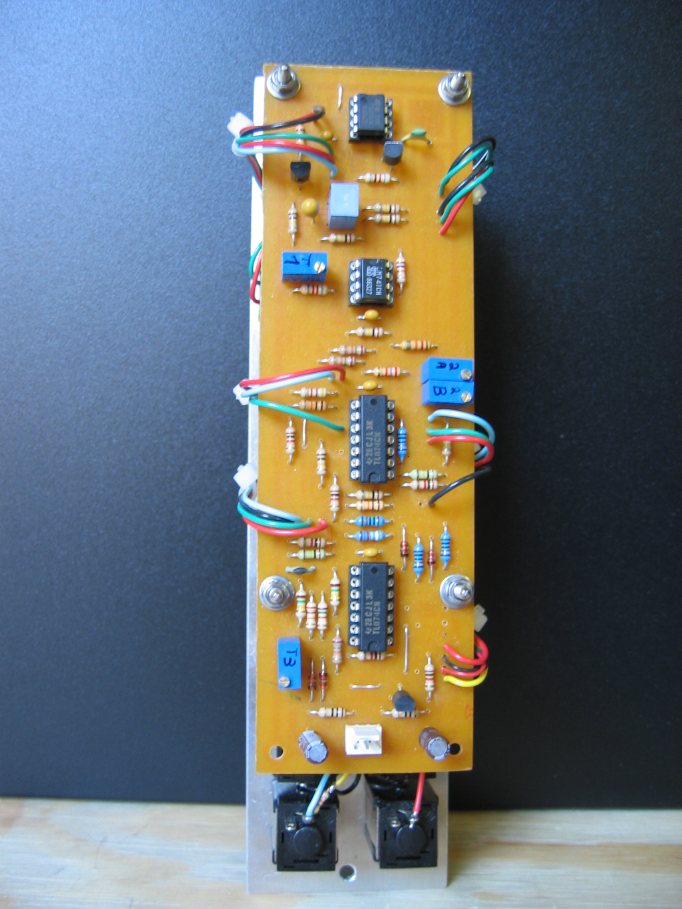

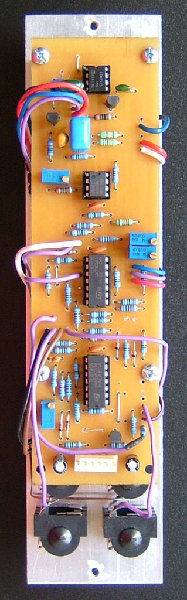

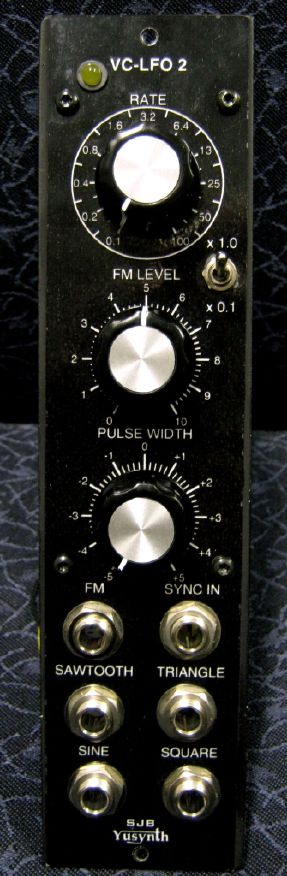

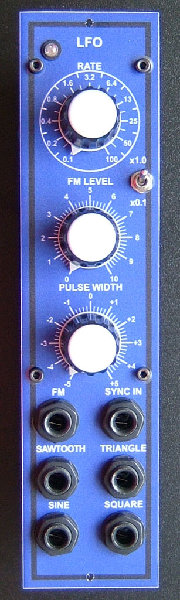

Name : Czaba ZVEKAN Modular project : Location : Basel, Switzerland Website :	Name : Meic Modular project : Scaff beat Location : Hamburg, Germany Website : http://www.myspace.com/scaffbeat	Name : Oliver ABPLANAP Modular project : Cave Studio Location : Schaffhausen, Switzerland Website : http://www.cavestudio.ch

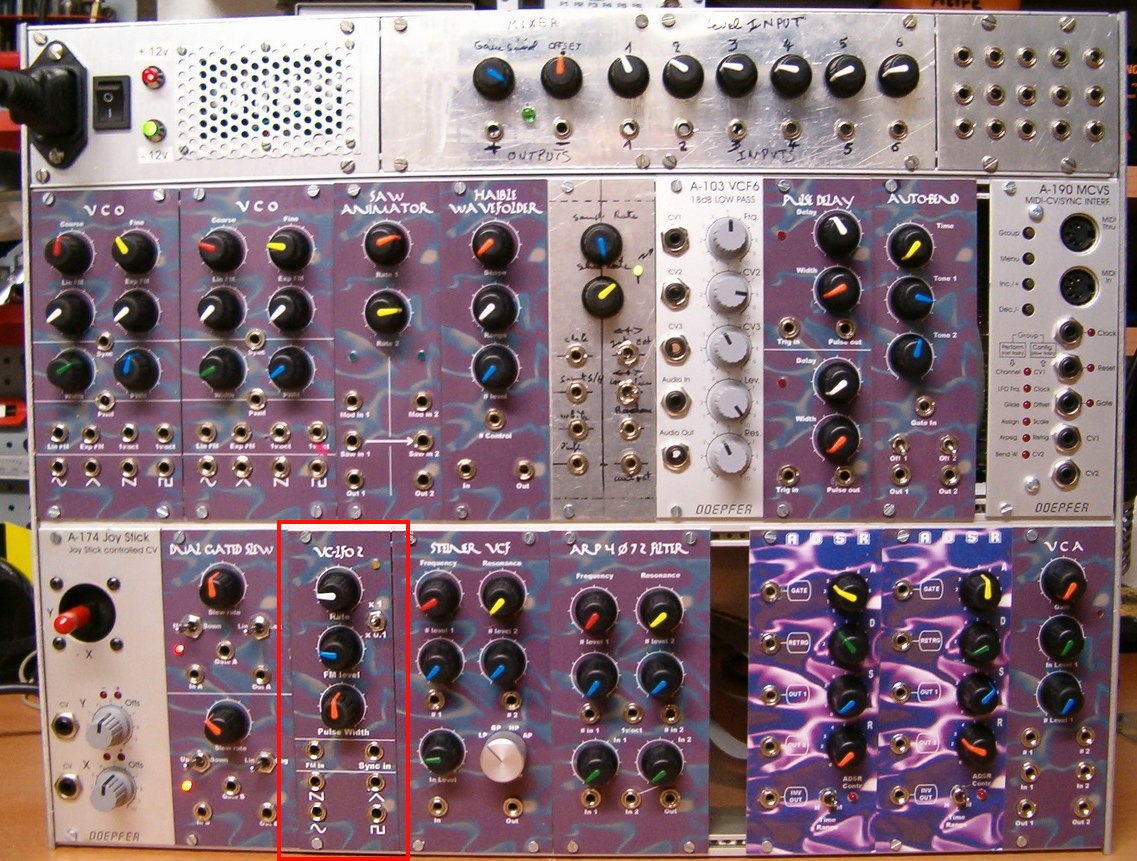

Name : Florence Patrick Pseudo : Baronrouge Modular project: Location Toulon, France Web site : http://myspace.com/patjhc	Name : Pseudo : Sebo Modular project : Location : Argentina Website : http://www.cosaquitosenglobo.com.ar	Name : Zarko Modular project : Location : Gardanne, France Website :

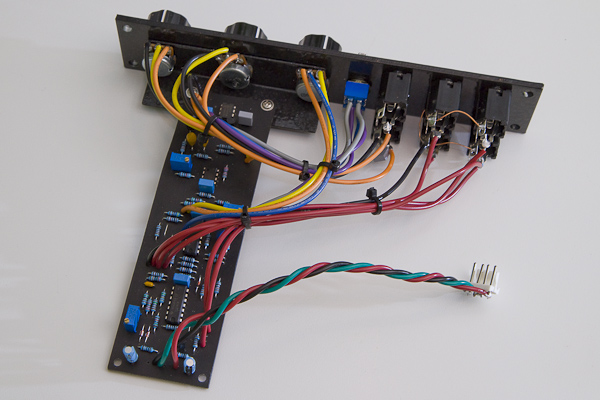

Name : Pseudo : dstrength Modular project : Location : Mobile, Alabama, USA Website :	Name : Steven Brenner Pseudo : Modular project : Location : Waterloo, Ontario, Canada Website :
