With the kind help of Jean-Claude Jésior
| In
order to host the YUSYNTH modules I built two cabinets, a small 22U
space cabinet "à la" Synthesizers.com and a large three rows 66U
cabinet that I designed. The cabinet
are made of 20mm thick oak shelve boards available at regular stores. I
selected the boards in order to show as less as possible wood nodes and
other wood defects. The boards were cut and rabbeted, with the help of
my pal Jean-Claude Jésior who has a very efficient wood
workshop. Then I assembled the cabinets, dyed them with a regular "Dark
oak" stain, processed them with wood-filler, varnished and polished
them with 000 steel-wood until the desired finishing was obtained. |
22 U cabinet / synthesizers.com standard
| After
glueing the boards |
Dyed,varnished
and polished |
Dye
match check |
A
finished cabinet ! |
 |
 |
 |
 |
 |

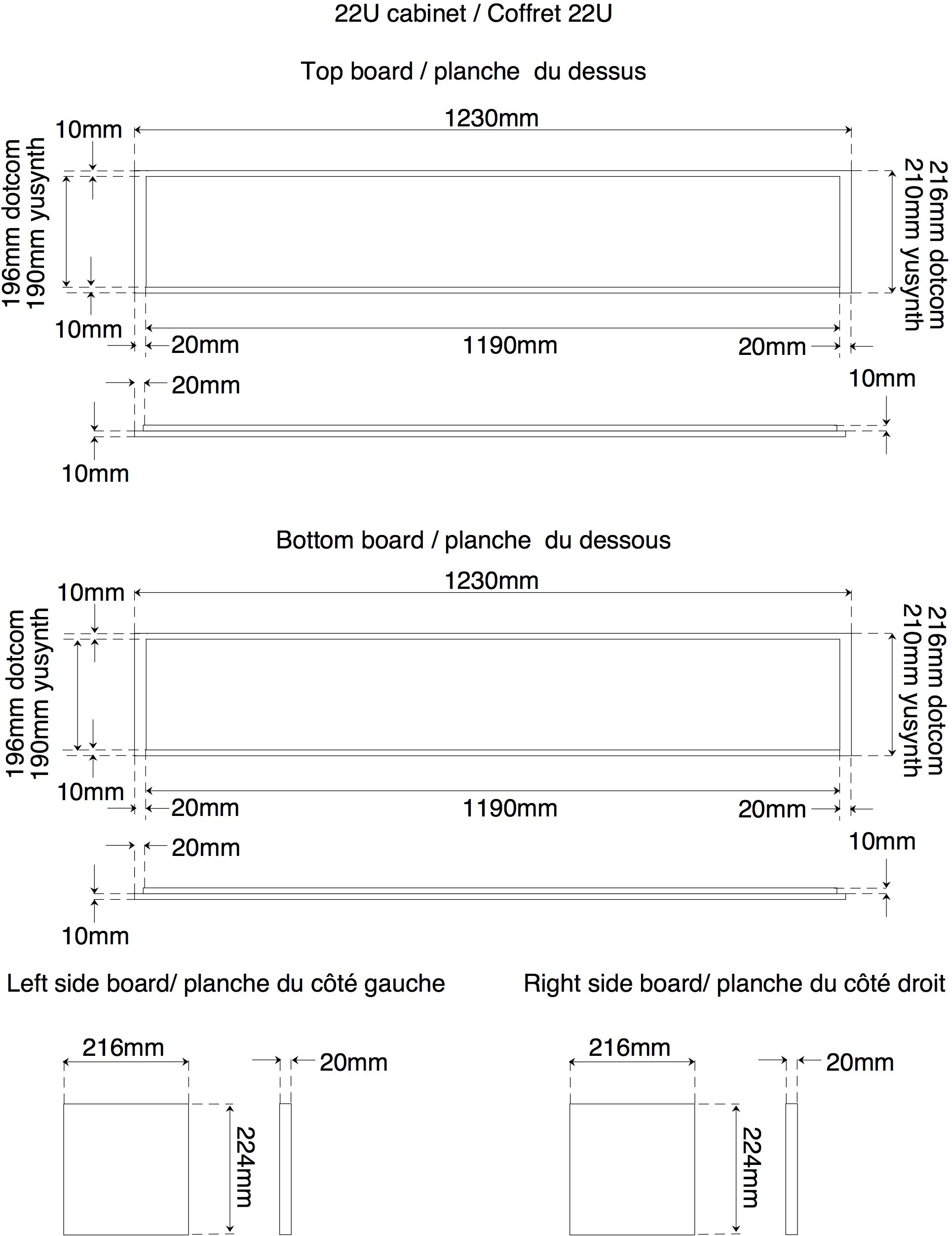

The blueprints as a PDF file |
| It
started there... |
Some
inhabitants already ! |
Some
more... |
Ain't
she beautiful ? |
 |
 |
 |
 |
 |

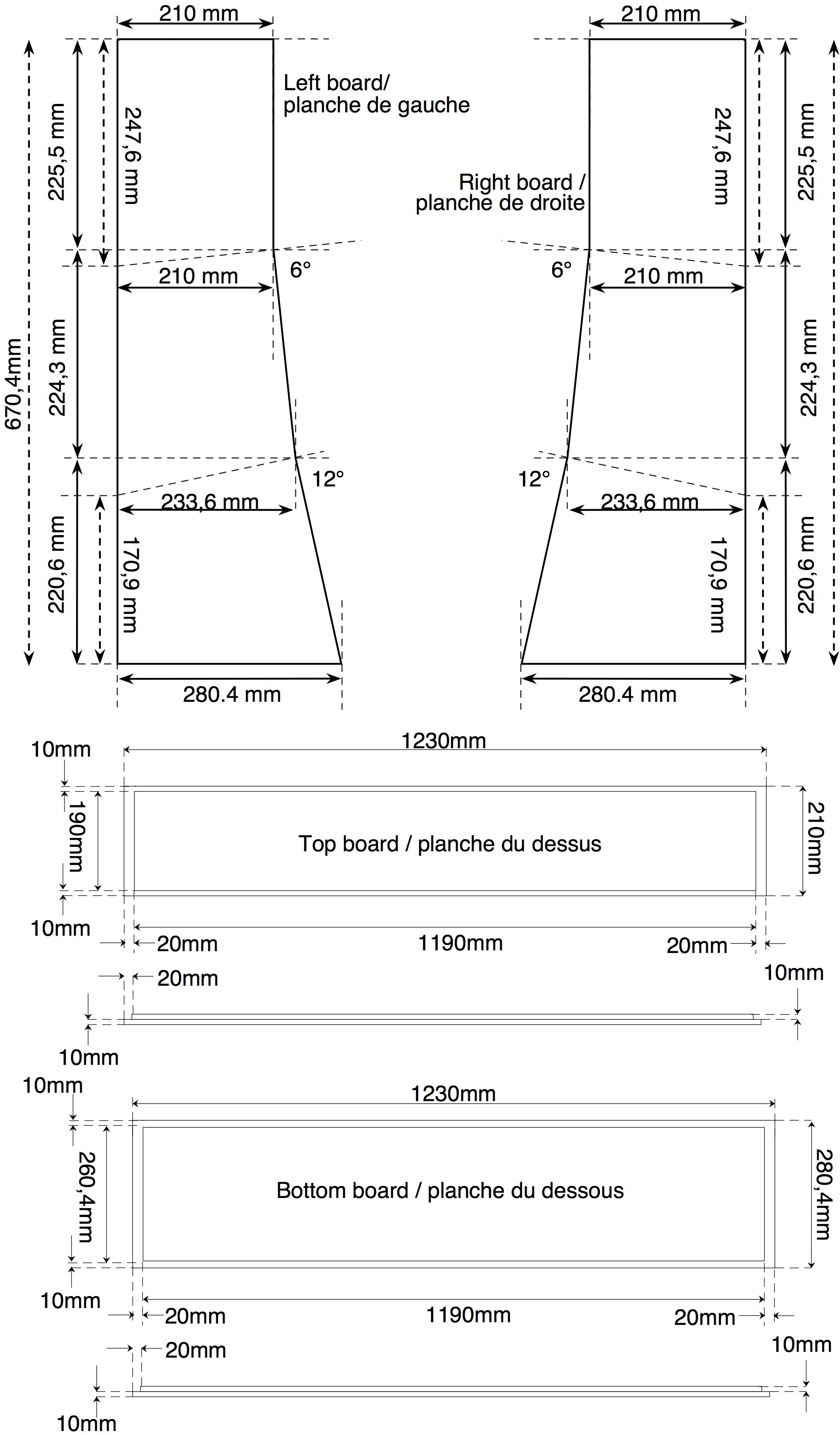

The blueprints as a PDF file |
More to come...
